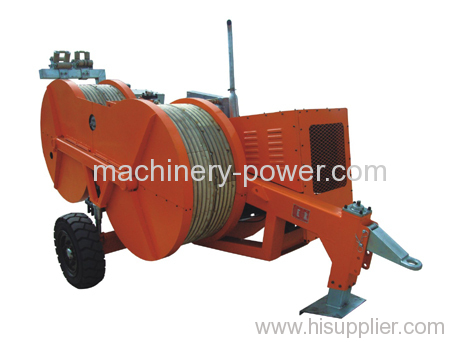

Hydraulic Tensioner

Essential parameter
     Maximum Tension(kN): 2 35 or 1 70
     Continuous Tension(kN):2 30 or 1 60
     Maximum speed (km/h):5
     Bullwheel bottom of groove diameter(mm) : 1200
     Number of grooves:2  5
     Maximum pullback (kN):2 30 or 1 60
     Maximum speedback (km/h):2 1.2
     Maximum suitable conductor diameter (mm):  32
     Engine power /speed (kW/rpm):38/2500
     Dimensions (mm): 4100  2100 2600
     Weight(kg):4000
uses :used to string various conducts and earthwire .
feature :
     1. Bullwheel with wearproof MC nylon lining segments.
     2.  Infinitely variable tension control and constant tension conductor stringing .
     3.  Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
     4.  attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .
Main component
     1.Engine :Chinese famous brand water Ccooled engine .
     2.main pump and main motor : Rexroth (BOSCH )
     3.Reducer : RR(Italian) or Rexroth
     4.hydraulic valve : Rexroth (BOSCH )
     5.radiator :AKG
     6.hydraulic instrument :WIKA
     7.it can choose :Deutz air Ccooled engine .

    Hydraulic Tensioner has been presented above, want more similar products, please click YK-YZ2*35 Hydraulic Tensioner,SA- YZ2 35Hydraulic Tensioner,SA YZ2 35 Hydraulic Tensioner.
    Our Hydraulic Tensioner is good in quality and competitive in price. We manufacture Hydraulic Tensioner and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
